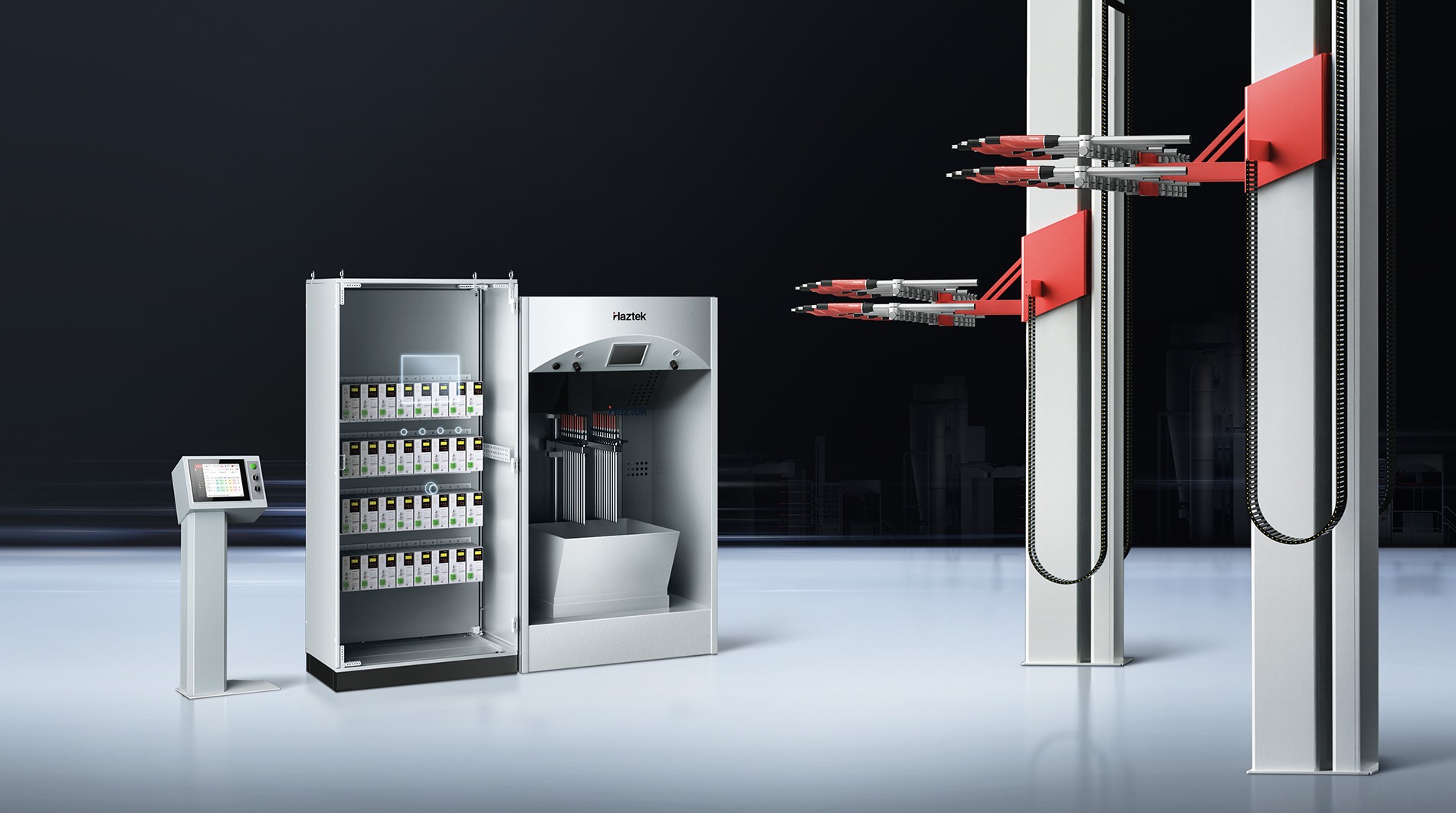

SURPASS Spray System
更智能高效的產品體驗、更高的安全環保標準
及更杰出的涂層品質
SURPASS超越系列噴涂系統是一款智能化、規模化的靜電粉末噴涂解決方案。它具備強大的大規模部署能力，兼具高效管理和簡便操作的特點。通過Coatpilot + GC20NA控制器，可以實現大規模噴槍群控制，簡化設備調控流程，有效避免設置失誤并顯著提升生產效率。同時，它支持多種涂裝模式的預設與遠程編程，可自動識別工件，一鍵滿足各種涂裝需求，展現出卓越的操作便捷性。模塊化控制器搭載防爆電柜，在安全性上比肩國際標準，確保工業應用中的高安全性。
超越系列還配備了最先進的靜電自適應技術和進氣自潔技術，100KV倍壓模塊可釋放強效靜電，顯著提升粉末帶電狀態。PCC電控系統實現精準調控，使上粉率達到75%以上，既有效節省耗材，又進一步提升生產效率。此外，其高效穩定的粉末霧化技術確保了卓越的涂裝品質，使SURPASS超越系列成為提升生產效率、節約耗材，并創造超預期投資回報的理想選擇。
Smarter and more efficient product experience, higher safety and environmental standards
and outstanding coating quality
SURPASS Beyond Series Coating System is an intelligent, large-scale electrostatic powder coating system. It has the ability of large-scale deployment, and at the same time, it is characterized by efficient management and easy operation.Coatpilot + GC20NA controller can realize large-scale spray gun group control, simplify the process of equipment regulation and control, avoid setup errors, and improve production efficiency. It supports a variety of coating mode presets and remote programming, automatic workpiece recognition, one-click to meet a variety of coating needs, showing its excellent ease of operation. The modular controller design is equipped with explosion-proof electric cabinet, which is comparable to international standards in safety and ensures high safety performance in industrial applications.
SURPASS series also equipped with the most advanced electrostatic self-adaptive technology and air intake self-cleaning technology, 100KV times the pressure module to release the strong electrostatic, significantly improve the powder charged state, PCC electronic control precision control, to achieve up to more than 75% of the powder on the rate of effective savings in consumables, improve productivity. In addition, efficient and stable powder atomization further guarantees excellent coating quality, making the SURPASS Beyond Series an ideal choice for improving productivity, saving consumables and creating an extraordinary return on investment.
融合三大精尖技術
探頂行業上粉率
Integration of Three Leading-Edge Technologies to Achieve
the
Highest Powder Spraying Efficiency in the Industry
超越 · 靜電性能 / 精準充分快充
100kV倍壓模塊結合電極針自清潔技術，釋放強效靜電，確保每顆粉末涂料粒子均達到最佳帶電狀態。上粉率顯著提升，即使是復雜的凹槽也能輕松覆蓋，大幅減少粉末浪費，為您帶來高效的噴涂體驗。
超越 · 出粉狀態 / 精密均勻出粉
PCT比例閥技術帶來精確的氣流控制，結合PPH40的柔和高濃度粉末供應和特殊設計的噴嘴，實現更加穩定的粉末輸出和優異的霧化效果。這種創新組合顯著提升了涂層的均勻性與質量，令涂層流平效果更加出色，為您提供卓越的噴涂表現。
超越 · 設計品質 / 恒穩運行
超越系列噴槍的高性能與高可靠性，得益于漢哲一流的設計水準、嚴苛的檢驗標準以及國際一線品牌元器件的卓越品質。正是這種精益求精的完美結合，賦予了噴槍穩定高效的性能保障，助力用戶實現卓越的噴涂品質與生產效率。。
Transcendence · Electrostatic Performance / Accurate and Sufficient Charging
The 100kV voltage doubling module combined with the electrode needle self-cleaning technology releases strong static electricity to ensure that each powder coating particle is optimally charged. The powder loading rate is significantly increased, even complex grooves can be easily covered, significantly reducing powder waste, bringing you an efficient spraying experience.
Transcendence · Powder Spraying Performance / Precise and Uniform Powder Spraying
PCT proportional valve technology delivers precise airflow control, combined with the PH40's soft, highly concentrated powder supply and specially designed nozzles for more consistent powder output and superior atomization. This innovative combination significantly improves the uniformity and quality of the coating, resulting in better leveling of the coating, providing you with excellent spraying performance.
Transcendence · Design Quality / Stable Operation
The high performance and reliability of the Beyond series spray guns are attributed to Haztek first-class design standards, stringent inspection criteria, and the excellent quality of first-tier international brand components. It is this perfect combination of continuous improvement that endows the spray guns with stable and efficient performance, helping users achieve excellent coating quality and production efficiency.

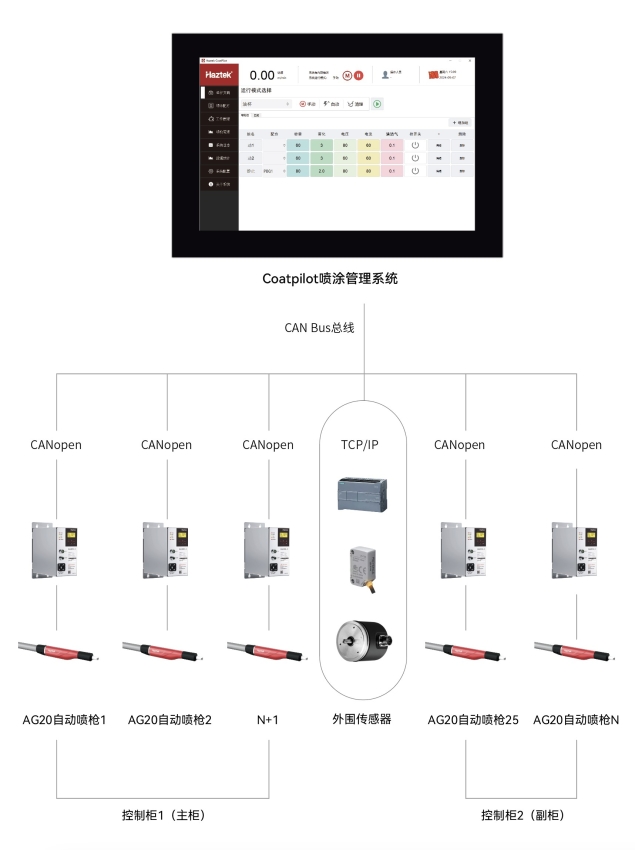

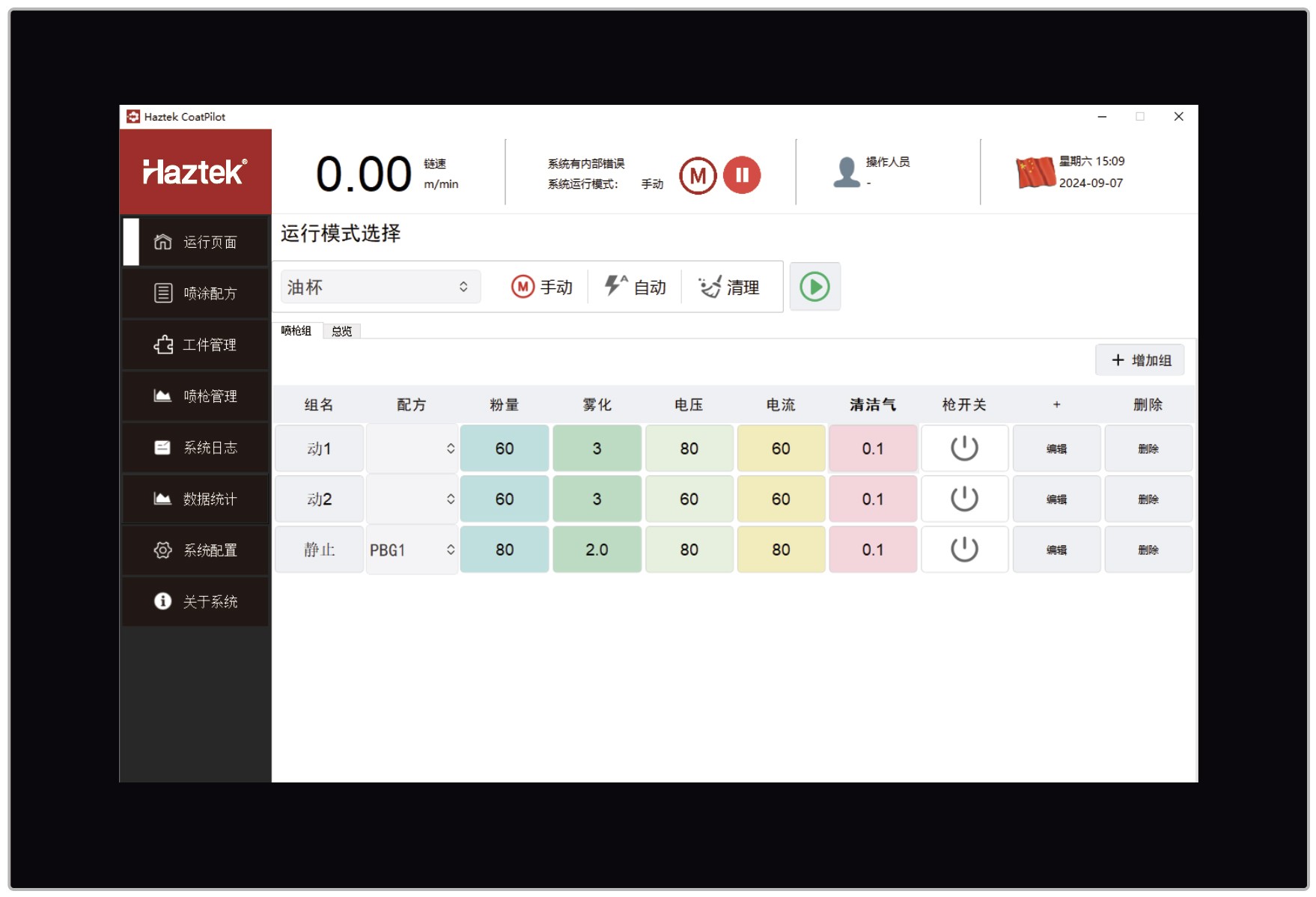

更高效便捷的
Coatpilot噴涂管理系統
More efficient and convenient
Coatpilot spraying system
更簡單地處理復雜流程
全局模塊化管理能夠在眾多的工件種類中快速部署工藝參數，使得轉換的效率更高，重復質量更容易。
高效且連續的涂層
通過增加如間隙、高度和深度控制等自動功能激活系統的潛力。對于非常復雜工件的自動化需求，可提供無需編程的動態3D噴涂解決方案。
簡單、安全且快速的操作
使用12英寸的多點觸控顯示屏控制所有的噴涂過程，具有直觀的選項、清晰的可視化圖標和參數，機器狀態一目了然。
兼容第三方API/適配性強
CoatPliot系統兼具開放性，可通過ERP、MES、其他第三方系統的API接口將Coatpilot集成到您的生產環境中，與其他設備及系統構成強大的自動化生產系統。
Simpler handling of complex processes
The global modular management allows for quick deployment of process parameters among numerous types of workpieces, resulting in higher efficiency and easier replication of quality.
Efficient and continuous coating
Activate the system's potential by incorporating automatic functions such as gap, height, and depth control. For the automation needs of highly complex workpieces, dynamic 3D coating solutions are available without programming
Simple, safe, and fast operation
Control all spray coating processes using a 12-inch multi-touch screen with intuitive buttons, clear visual icons and parameters for easy understanding of machine status.
Future-oriented control system
The CoatPilot system is open and can be integrated into your production environment through APIs with ERP, MES, and other third-party systems. This allows for the formation of a powerful automated production system with other equipment and systems.

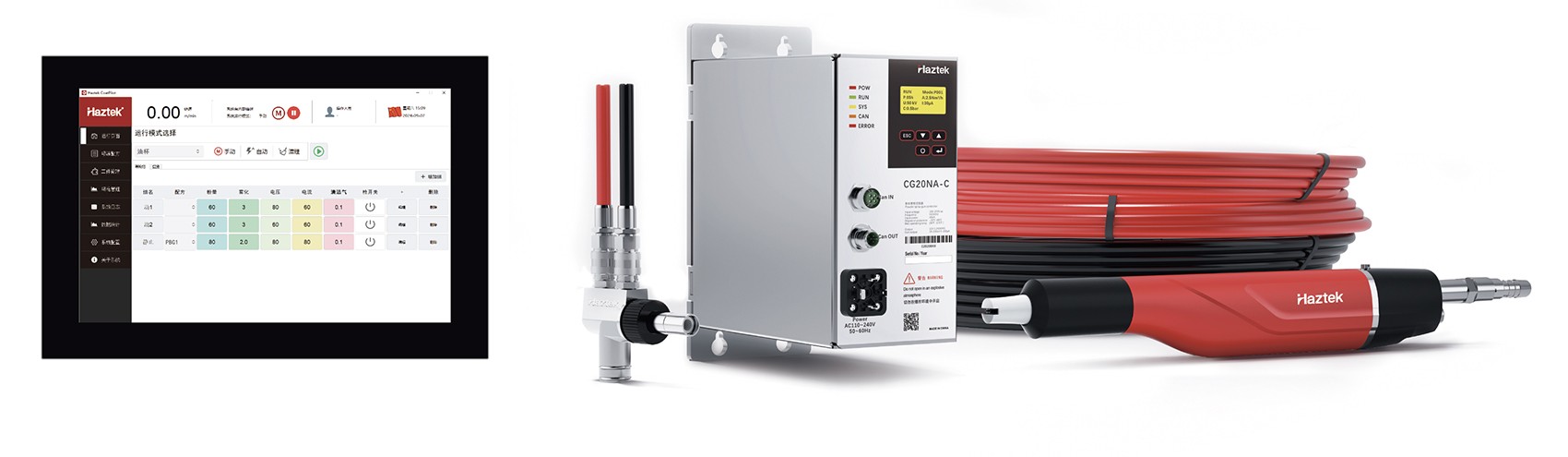

超越系列Surpass
GC20NA-C自動噴涂解決方案
Surpass GC20NA -C Automated Coating Solutions
適用：中大型企業大規模部署/全面對標歐美進口品牌
系統配置：Coatpilot噴涂管理系統、GC20NA-C控制器、AG20自動噴槍（可選90、120、135多角度彎頭）、PPH40粉泵、
Large-scale deployment of medium and large enterprises/comprehensive benchmarking
of imported brands in Europe and the United States
System configuration: Coatpilot spray management system, GC20NA-C controller, AG20 automatic spray gun (optional 90, 120, 135 multi-angle elbows),
PPH40 powder pump.

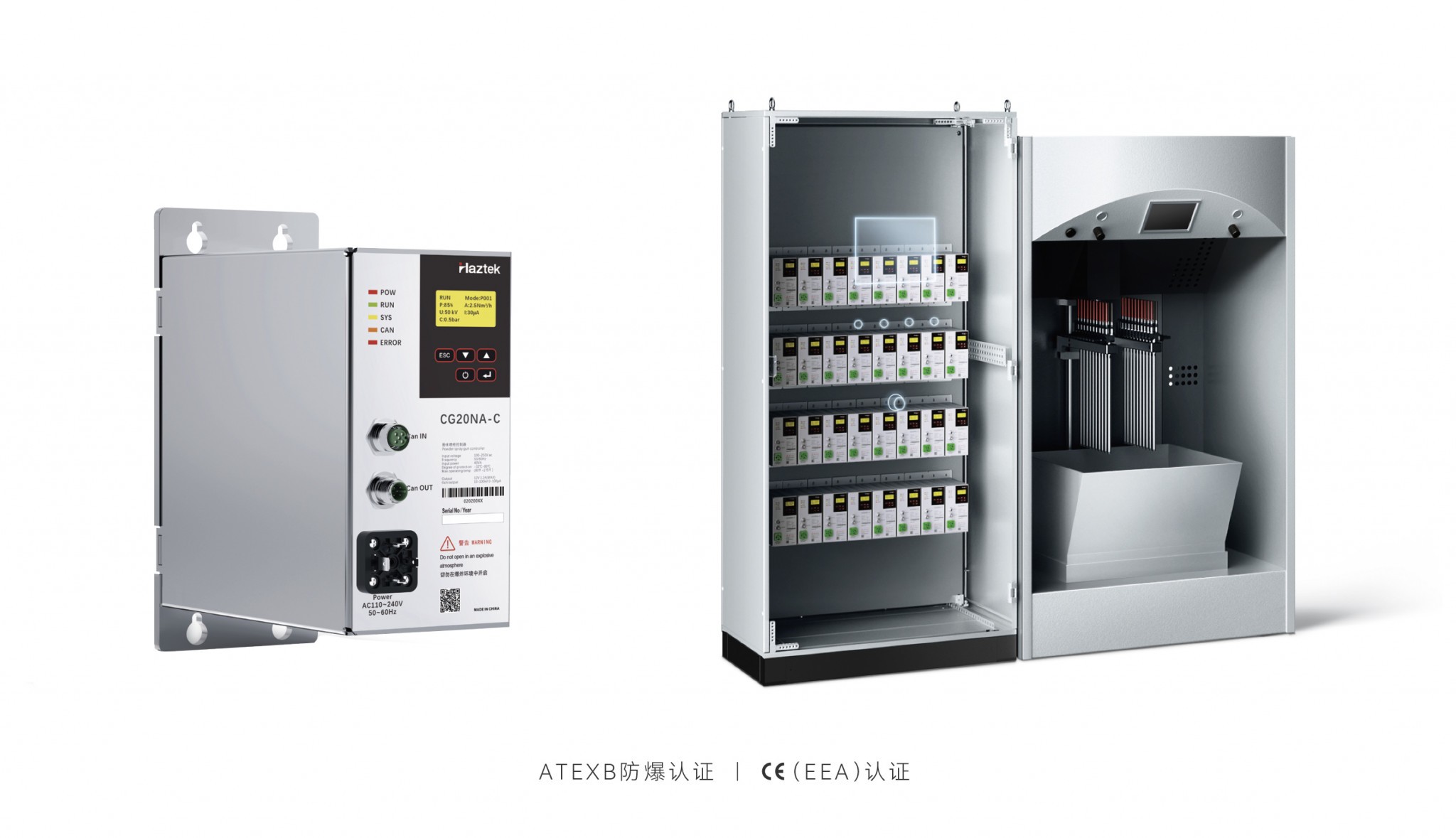

Surpass GC20NA-C靜電粉末噴槍控制器
Surpass GC20NA-C Electrostatic Powder Spray Gun Controller
GC20NA-C控制器是專為自動噴涂集成設計的高性能控制器，適用于大規模部署的自動化設備。具有高可靠性、智能化功能和高度集成性，注重安全性，適用于高端自動化領域，能滿足復雜需求，是對產品性能和安全性有嚴格要求的企業的理想選擇。
The GC20NA-C controller is a high-performance controller designed for automated coating integration and is suitable for large-scale deployment of automation equipment. With high reliability, intelligent functions and high integration, focusing on safety, it is suitable for high-end automation fields and can meet complex demands, making it an ideal choice for companies with strict requirements on product performance and safety.
緊湊、模塊化設計：GC20NA-C的設計理念是簡潔與效率的結合，使其在占地面積小的同時，功能強大。
開放性與集成化：采用標準的CANopen協議，并向所有用戶開放Eds文件，為用戶提供了更大的二次開發空間和設備互聯互控的可能性。
卓越的散熱性能：全鋁機身不僅堅固耐用，更為重要的是，它提供了出色的散熱性能，確保設備在長時間運行下仍能保持穩定。
更低的故障率：設備的穩定性直接關系到生產效率。GC20NA-C在設計和生產過程中都經過了嚴格的質量控制，確保其故障率遠低于行業標準。
安全性：GC20NA-C控制器采用了獨特的外形設計，確保其與防爆電柜完美兼容。無論在哪種環境下都能為您提供穩定、安全的粉末供應并滿足電壓控制需求。
Compact and modular design: The design concept of GC20NA-C combines simplicity and efficiency, making it powerful while occupying a small footprint.
Openness and integration: Adopting the standard CANopen protocol and opening the Eds files to all users provides greater space for secondary development and the possibility of interconnection and mutual control between devices.
Excellent heat dissipation performance: The full aluminum body is not only sturdy and durable but also provides excellent heat dissipation performance, ensuring that the equipment remains stable during long-term operation.
Lower failure rate: The stability of the equipment is directly related to production efficiency. The GC20NA-C has undergone strict quality control during design and production, ensuring its failure rate is far below the industry standard.
Safety: The GC20NA-C controller features a unique design that ensures perfect compatibility with explosion-proof electrical cabinets. It can provide stable and safe powder supply and meet voltage control requirements in any environment.

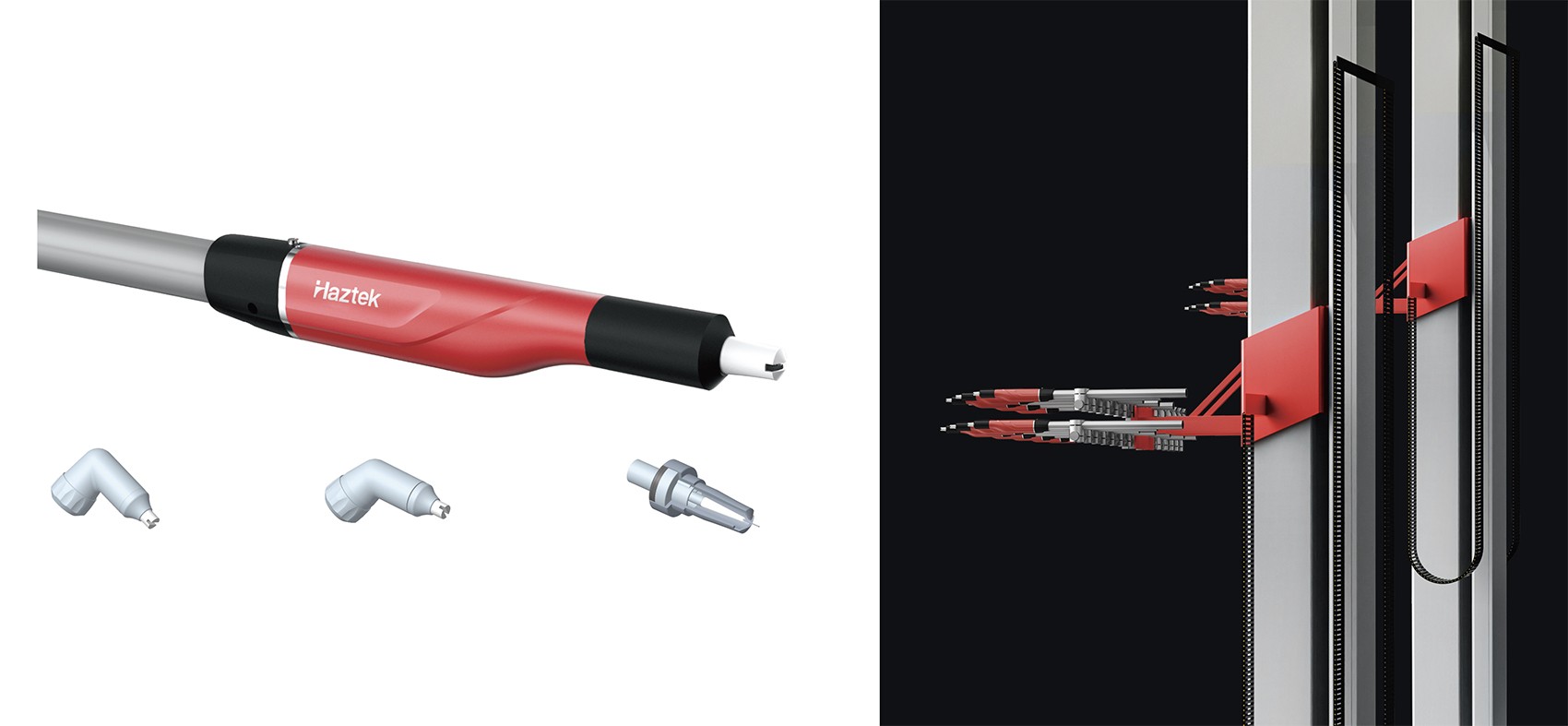

AG20自動噴槍
GunAG20 Automatic Spray Gun
內置100kv高性能倍壓塊，確保持續輸出穩定，從而實現極高的上粉率。電極針內部設計有三次進氣技術，讓電極針尖保持清潔，有效防止粉末凝結，確保優良的靜電釋放效果。可選擇90°、120°、135°多種不同角度的彎頭噴嘴。可適用于大多數常見粉末，包括金屬粉末，滿足多種涂料需求，滿足不同需求。
Built-in 100kv high-performance pressure doubler block ensures stable continuous output, resulting in an extremely high powder loading rate. The electrode needle is internally designed with three times air intake technology to keep the electrode tip clean and effectively prevent powder condensation, ensuring excellent electrostatic discharge. A wide range of elbow nozzles with different angles of 90°, 120° and 135° are available. Can be applied to most common powders, including metal powders, to meet a wide range of coatings to meet different needs.

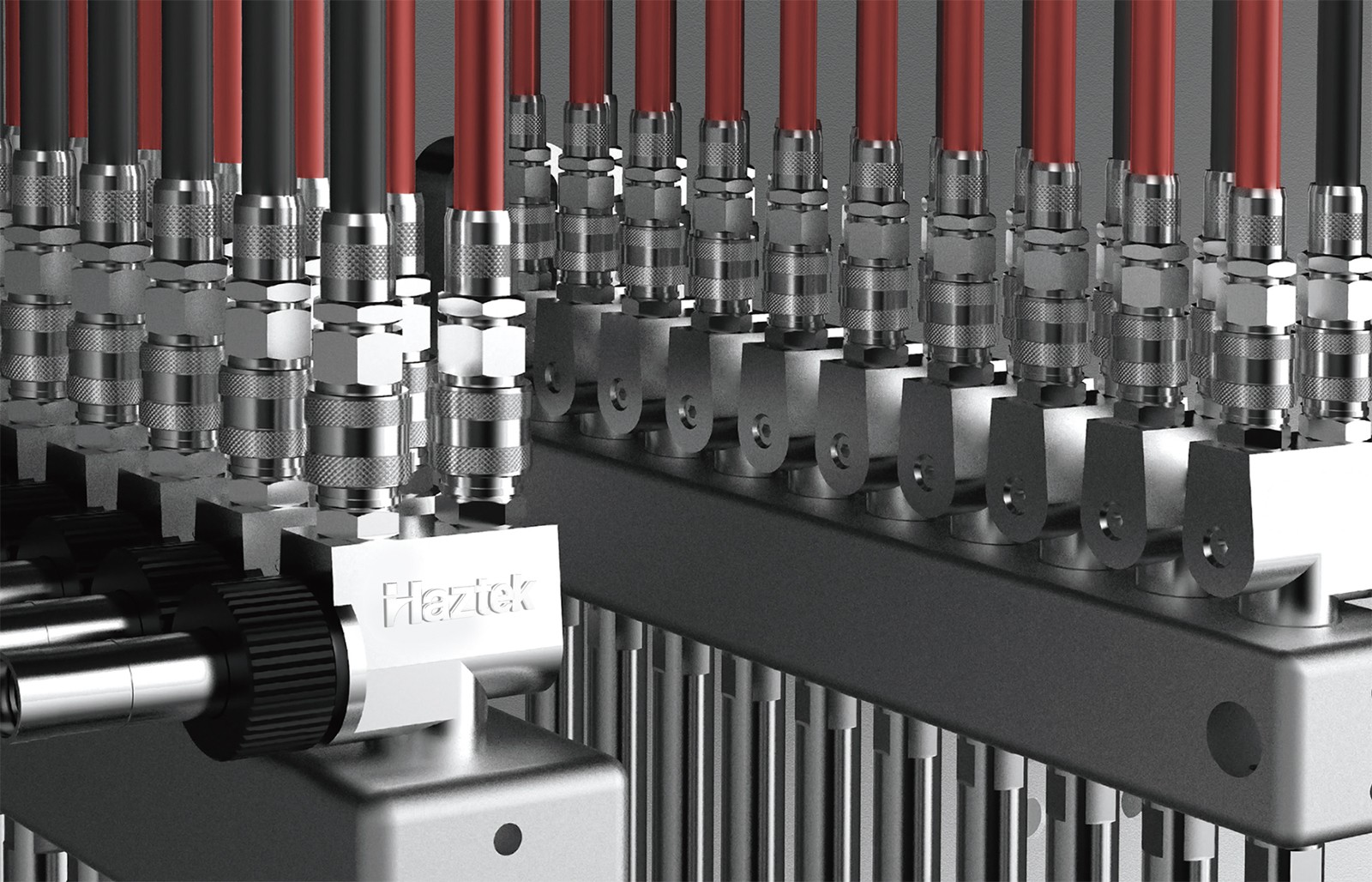

PPH40粉泵
PPH40 Powder Pump
滿足“即插即用”功能，適用于快速換色和快速清理。粉管快插式設計，方便粉管的清潔分離與連接；文丘里管采用優質不粘材質制造，并配有連接壓縮空氣的快速接頭。
Meets the "plug and play" function, suitable for quick color changes and cleaning. Quick plug design for powder hoses to facilitate separation and connection for cleaning. The Venturi tube is made of high-quality non-stick material and comes with a quick connection for compressed air.
您可以雙擊這里或者點擊編輯按鈕來修改內容。
您還可以添加圖標，按鈕，圖片等常用元素
可從粉桶拆卸
帶快拆式接頭的單向閥
經久耐用的文丘里管
供粉穩定
霧化效果佳
粉末最大輸出為520g/min
Easy disassembly from the powder barrel
With quick-disconnect one-way valve
Durable Venturi tube
Stable powder supply
Excellent atomization effect
Maximum powder output of 520g/min
越系列Surpass GC20NA-C自動噴涂解決方案/應用展示
Surpass GC20NA-C Automatic Coating Solution/Application Demonstration
超越系列Surpass GC20自動噴涂解決方案
Surpass GC20 Automated Coating Solutions
適用：中大型企業常規部署/全面對標歐美進口品牌
系統配置：Coatpilot噴涂管理系統、GC20A控制器、AG20自動噴槍（可選90、120、135多角度彎頭）、PPH40粉泵、
Routine deployment of medium and large enterprises/comprehensive benchmarking of imported brands in Europe and the United States
System configuration: Coatpilot spraying management system, GC20 controller, AG20 automatic spray gun (optional 90, 120, 135 multi-angle elbow),
PH40 powder pump,

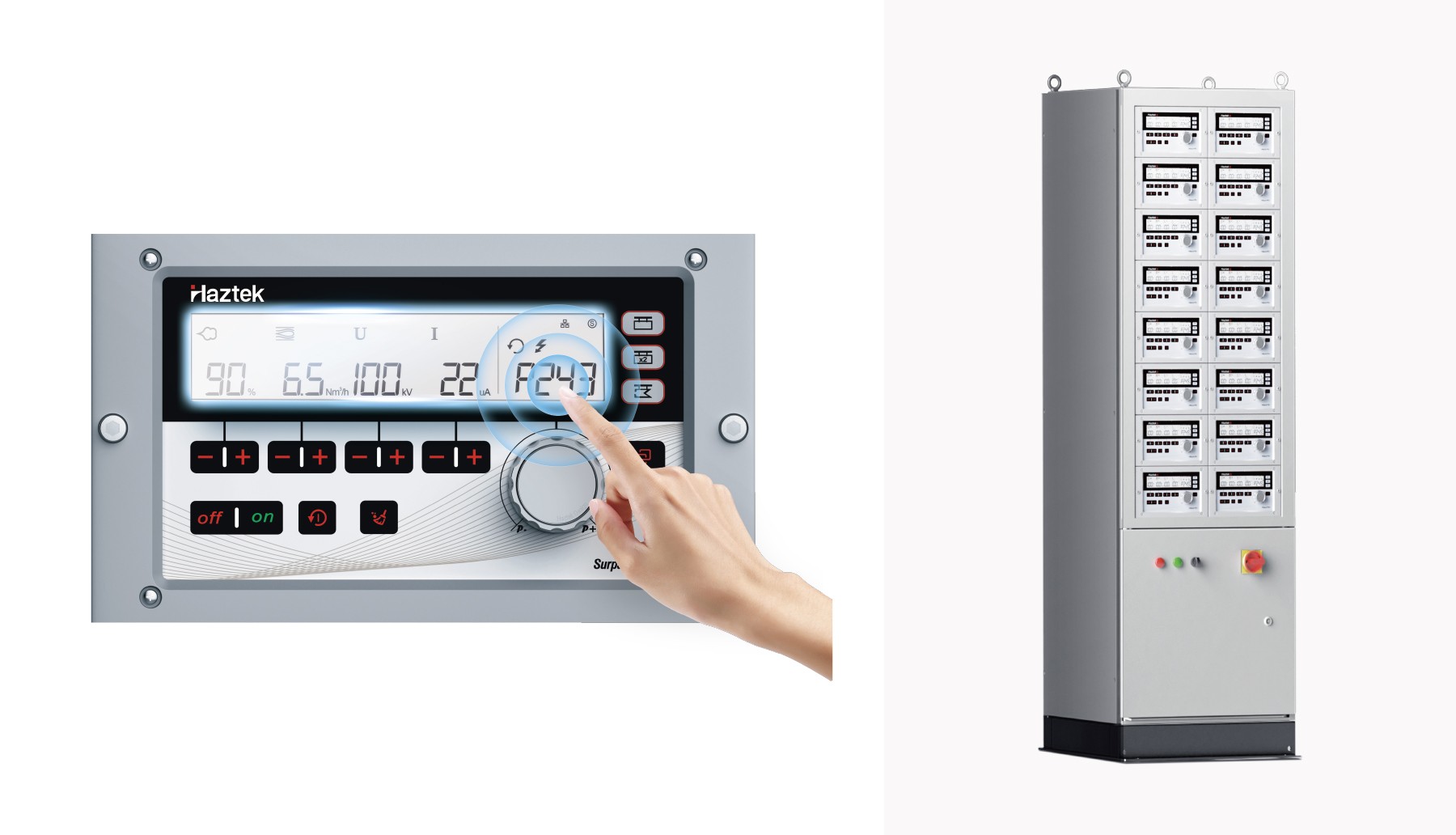

GC20A自動噴槍控制器
GC20A Automatic Spray Gun Controller
搭載數字閥門與PCC精準電流控制技術，確保噴涂過程中的流量和壓力穩定，同時可以提供10μA以下的精準電流調節，確保粉末不會過度充電，提高噴涂效果的穩定性與噴涂質量。GC20A控制器支持最大20個可編程噴涂程序，每組參數都可自動保存，方便下次調用。此外，GC20A配備可旋轉的CANOpen通訊模塊，并提供Eds文件，為二次開發和設備互聯帶來無限可能。具備內置自我診斷和一鍵清理功能，可自動檢測運行狀態，及時發現并提示問題。一鍵清理簡化噴槍的清潔和維護，提高換色效率。
Equipped with digital valves and PCC precision current control technology, it ensures stable flow and pressure during the spraying process, and at the same time, it can provide precise current regulation under 10μA to ensure that the powder will not be over-charged, and to improve the stability of the spraying effect and the quality of the spraying. the GC20A controller supports a maximum of 20 programmable spraying programs, and each set of parameters can be automatically saved for next time recall. In addition, the GC20A is equipped with a rotatable CANOpen communication module and provides Eds files, which brings unlimited possibilities for secondary development and equipment interconnection. Equipped with built-in self-diagnostic and one-key cleanup functions, it can automatically detect the operation status, and promptly find and prompt problems. One-touch cleanup simplifies gun cleaning and maintenance and improves color change efficiency.
超越系列Surpass GC20自動噴涂解決方案/應用展示
Surpass GC20 Automatic Coating Solution/Application Demonstration

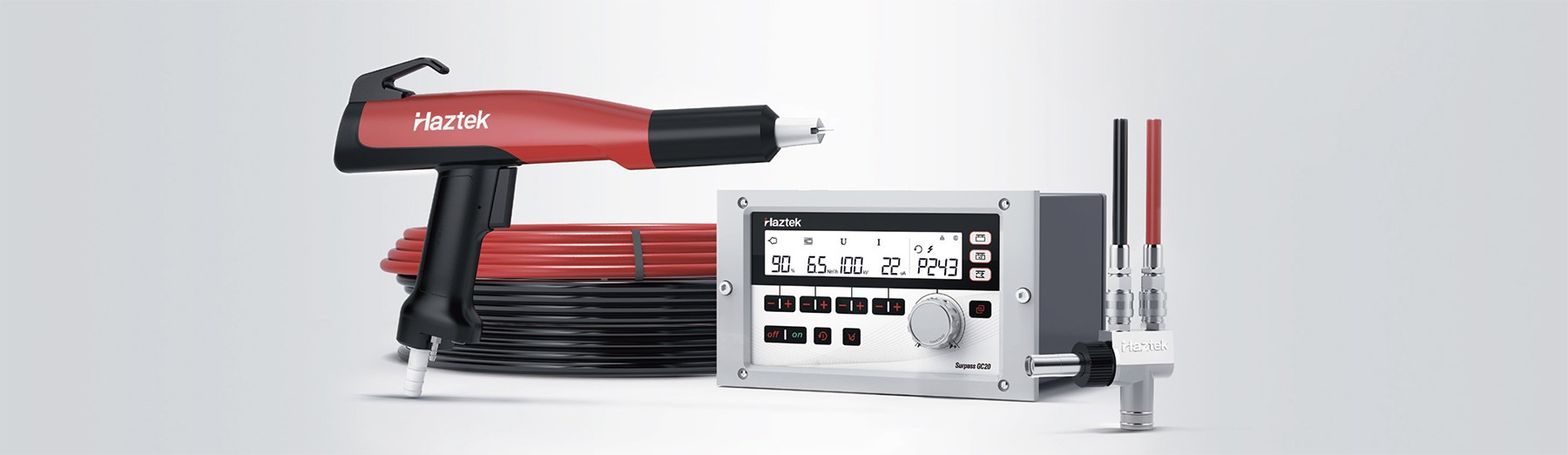

超越系列Surpass GC20M手動噴涂解決方案
Surpass GC20-F Manual Coating Solution
系統配置：GC20M手動噴槍控制器、MG20手動噴槍、PPH40粉泵、可以雙擊這里或者點擊編輯按鈕來修改內容。
System configuration: GC20M manual spray gun controller, MG20 manual spray gun, PPH40 powder pump.

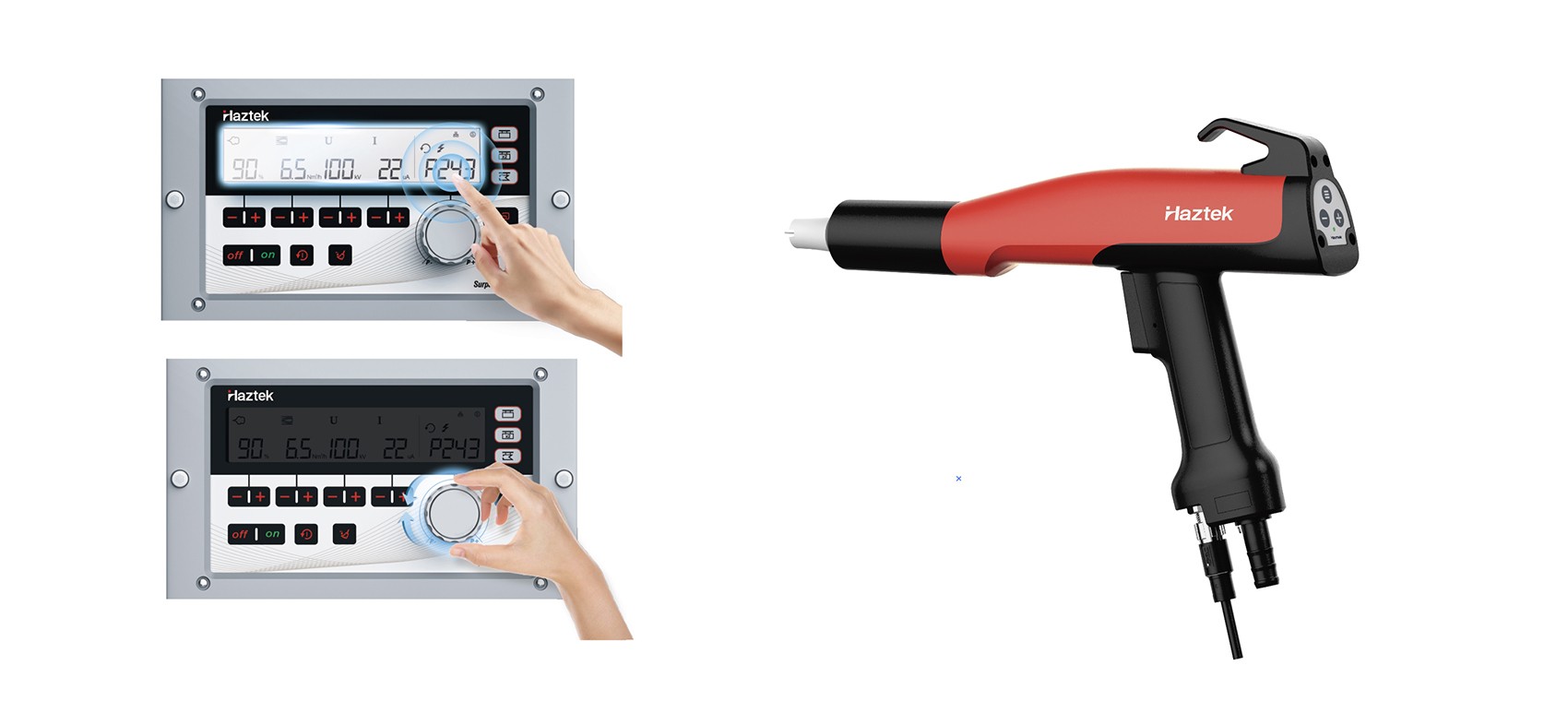

GC20M手動噴槍控制器
GC20M manual spray gun controller
GC20M控制器支持最多20個可編程噴涂程序。通過噴涂系統的精密電流調節、數字閥門技術、PCC精準電流控制、可編程噴涂程序、自我診斷功能、開放性與集成化設計，以及一鍵清理功能，確保了噴涂效果的穩定性和噴涂質量的提升，同時簡化了操作流程，提高了設備維護和換色效率，為手動噴涂應用提供了高效可靠的解決方案。
The GC20M controller supports up to 20 programmable spray coating programs. Through the system’s precise current adjustment, digital valve technology, PCC precise current control, programmable spray programs, self-diagnosis function, openness and integration design, and one-touch cleaning function, the stability of the spraying effect and the improvement of coating quality are ensured. At the same time, it simplifies the operation process, improves equipment maintenance and color change efficiency, providing an efficient and reliable solution for manual spraying applications.

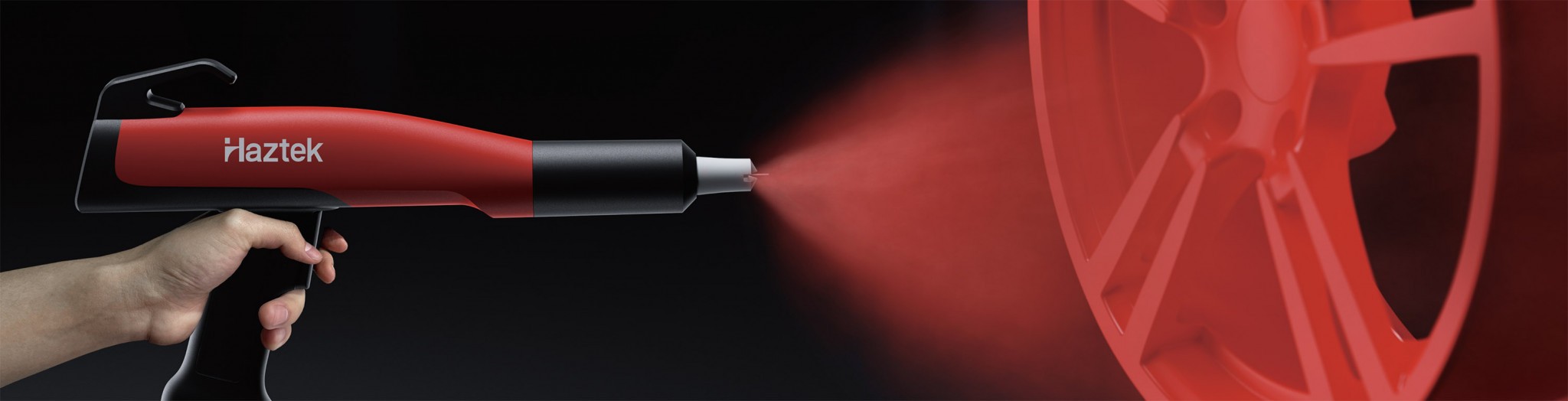

MG20 手動噴槍
Gun MG20 Manual Spray Gun
MG20具備出色的人體工程學設計，噴槍重量僅為510克，輕量化的同時仍保有超強的耐用性。其獨特的仰角和手柄設計，使得長時間操作也不會感到疲勞。配備外置遠程觸摸控制模塊，輕松調節噴涂參數。雙擊扳機，即可快速切換到預設的噴涂程序，顯著提高工作效率。
內置的100kV高效倍壓塊確保了持續穩定的輸出，達到卓越的上粉效果。且適用于絕大多數常見粉末，甚至對于那些難以充電的粉末涂料，它也能實現高效涂覆。此外，抗磨損的設計和優質材料進一步降低了維護成本。
The MG20 has an excellent ergonomic design and weighs only 510 grams, making it lightweight while still retaining superior durability. Its unique elevation angle and handle design allow for long hours of operation without fatigue. An external remote touch control module makes adjusting spraying parameters a breeze. A double-click on the trigger quickly switches to a preset spraying program, greatly improving work efficiency.
The built-in 100kV high-efficiency pressure doubler ensures a constant and stable output for excellent powder coating results. It is suitable for most of the common powders, even for those difficult to charge powder coatings, it can also realize efficient coating. In addition, its wear-resistant design and preferred materials further reduce maintenance costs.

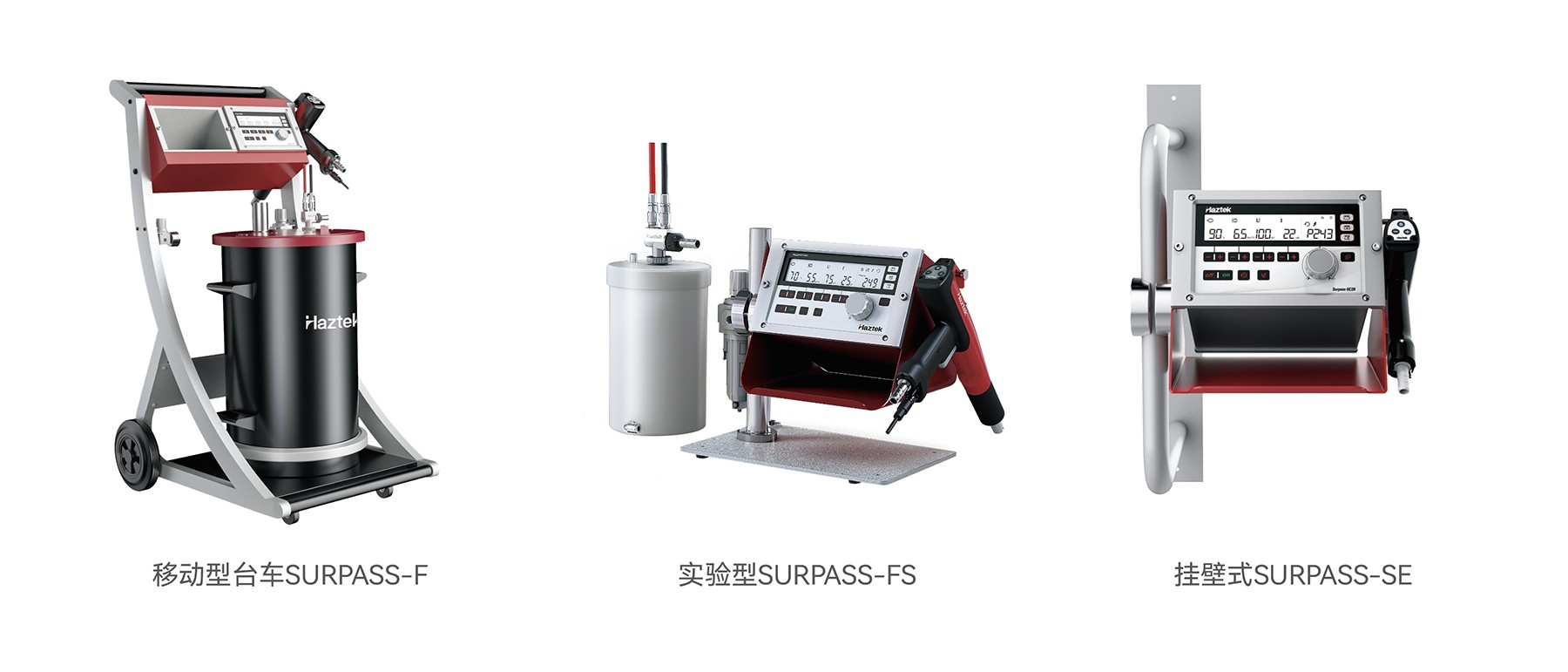

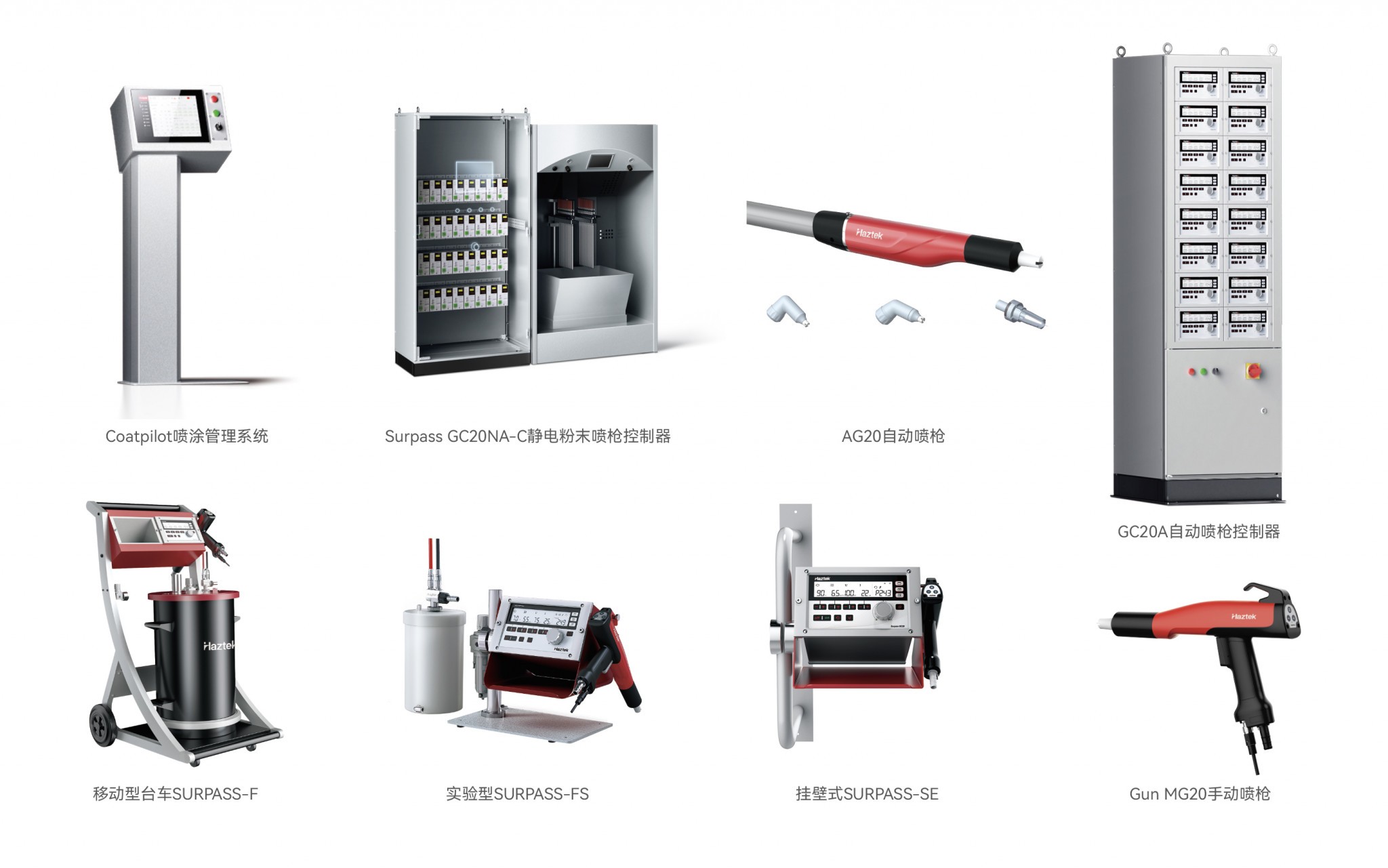

可搭載三種不同載具，滿足不同應用場景
手動噴涂設備以其卓越的靈活性和適應性，在不同的應用場景中展現出獨特的優勢。移動型臺車以其卓越的移動性脫穎而出，搭配220升的粉桶，使得大型工件的噴涂工作變得輕松便捷。實驗型設備則搭配小型粉桶，以其小巧靈活的特性，適應多變的實驗室環境和小型工件的噴涂需求。掛壁型的設計則考慮了空間利用，安裝簡便且節省空間，適合空間有限的工作場所。這些多樣化的載具選擇，確保了漢哲手動噴涂設備能夠滿足各種場景的需求，無論是在工業生產、實驗室測試還是空間受限的環境中，都能提供高效、穩定的噴涂解決方案。
Three different carriers can be carried to meet different application scenarios
Manual spraying equipment demonstrates unique advantages in different application scenarios, thanks to its exceptional flexibility and adaptability. The mobile cart stands out for its excellent mobility, paired with a 220-liter powder container, making the spraying of large workpieces easy and convenient. The experimental model, equipped with a small powder container, adapts to the changing environment of laboratories and the spraying needs of small workpieces, with its compact and flexible design. The wall-mounted model considers space utilization, with easy installation and space-saving features, making it suitable for workplaces with limited space. These diverse carrier options ensure that Haztek manual spraying equipment can meet the needs of various scenarios, whether in industrial production, laboratory testing, or space-constrained environments, providing efficient and stable spraying solutions.
