GC09靜電粉末噴涂系統
多種噴涂模式預設
讓生產沒有難噴的工件
Multiple Preset Spray Modes Make Production Of
Difficult-to-spray Workpieces Easier.
——讓每個操作人員都能輕松解決各類難噴的工件
GC09系列以高效、智能和易用性為核心，通過系統內置250種可編程噴涂程序，能夠一鍵應對各類復雜工件及噴涂難題，極大降低操作人員的上手難度。既降低了操作難度，又提升了生產效率，并確保涂層質量得到極高的保障，真正實現降本增效的生產管理，提升經營效益和增長潛力。
系統支持485總線Modbus通訊協議，使GC09噴槍系統能夠輕松與外部設備互聯，組成智能化控制系統，實現更高效的生產自動化，讓涂裝難題變得更加簡單。
Let Every Operator Be Able To Easily Solve Various
Difficult-to-spray Workpieces.
The GC09 series is centered around efficiency, intelligence, and ease of use. With 250 programmable spray coating programs built into the system, it can handle various complex workpieces and spraying challenges with one click, significantly reducing the difficulty for operators to get started. This not only lowers operational complexity but also boosts production efficiency, while ensuring high-quality coatings, achieving cost reduction and efficiency improvement in production management, and enhancing business profitability and growth potential.
The system supports the 485 bus Modbus communication protocol, allowing the GC09 spray gun system to easily interconnect with external devices, forming an intelligent control system that enables more efficient production automation and simplifies coating challenges.
故障診斷系統
Fault diagnosis system
出粉均勻
Uniform discharge
涂層細膩
Smooth coating
極易上手
Extremely easy to operate

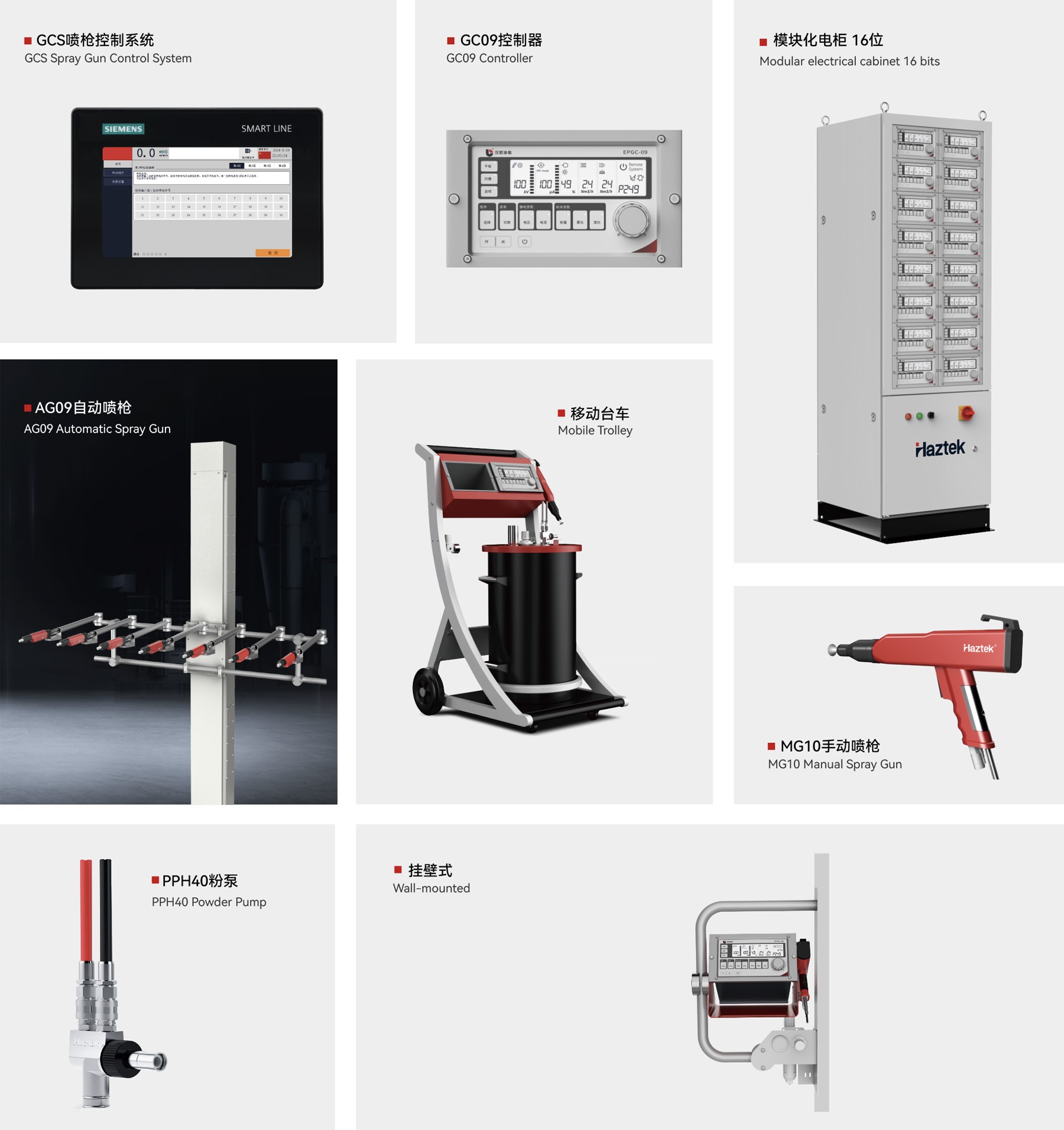

系統產品配置
System Product Configuration
GC09噴槍控制器
GC09 Spray Gun Controller
一指解決三大難噴的工件 / 不挑操作人員，一看就會，上手就是老師傅。

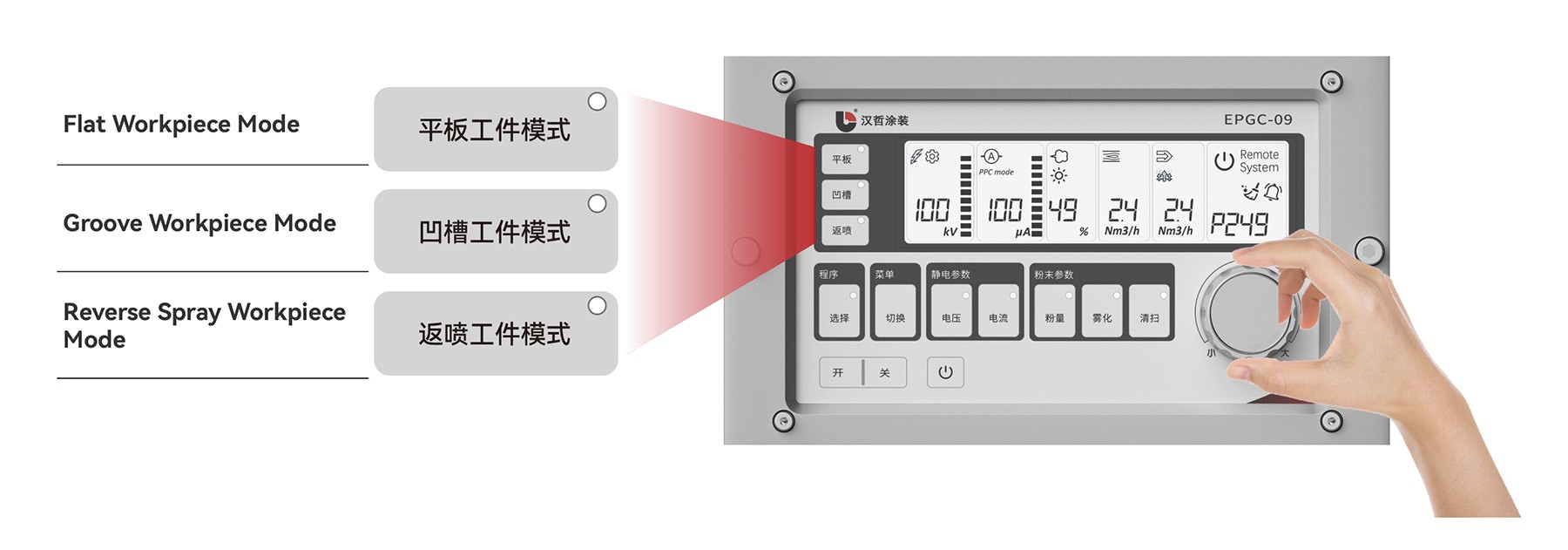

GC09在控制器上設定平板工件、凹槽工件、返噴工件三大模式，快速提升噴涂效率與噴涂品質，同時也降低對操作人員的經驗要求。控制器各項功能控制布局清晰、易理解、極易上手。
Solving three major difficult-to-spray workpieces with just a touch / Does not pick operators, easy to understand, easy to master just like a skilled worker.
The GC09 has three modes on the controller: flat workpiece, groove workpiece, and re-spray workpiece, which quickly improves spraying efficiency and quality, and also reduces the experience required of the operator. The controller's function control layout is clear, easy to understand, and extremely easy to use.
自動電流控制（ACC）技術
ACC技術通過控制電場強度，使得電場均勻分布各種凹槽或角落。讓粉末顆粒能夠均勻沉積在整個工件表面，而不會因為法拉第籠效應而在某些區域沉積不足。
DVC比例閥門調節技術
DVC比例閥門調節技術精確控制出粉，結合PPH40的柔和高濃度粉末供應和特殊設計的噴嘴，實現更加穩定的粉末輸出和優異的霧化效果。同時具備優異的粉末兼容性，確保涂層的高品質與連貫性。
Automatic Current Control (ACC) Technology
ACC technology controls the electric field intensity to achieve uniform distribution of the electric field in various grooves or corners. This allows powder particles to deposit uniformly on the entire surface of the workpiece, without insufficient deposition in certain areas due to the Faraday cage effect.
DVC proportional valve control technology
DVC proportional valve control technology precisely controls the powder output, combining the flexibility and high concentration powder supply of PPH40 and specially designed nozzles to achieve more stable powder output and excellent atomization effects. It also has excellent powder compatibility, ensuring high-quality and continuous coatings.

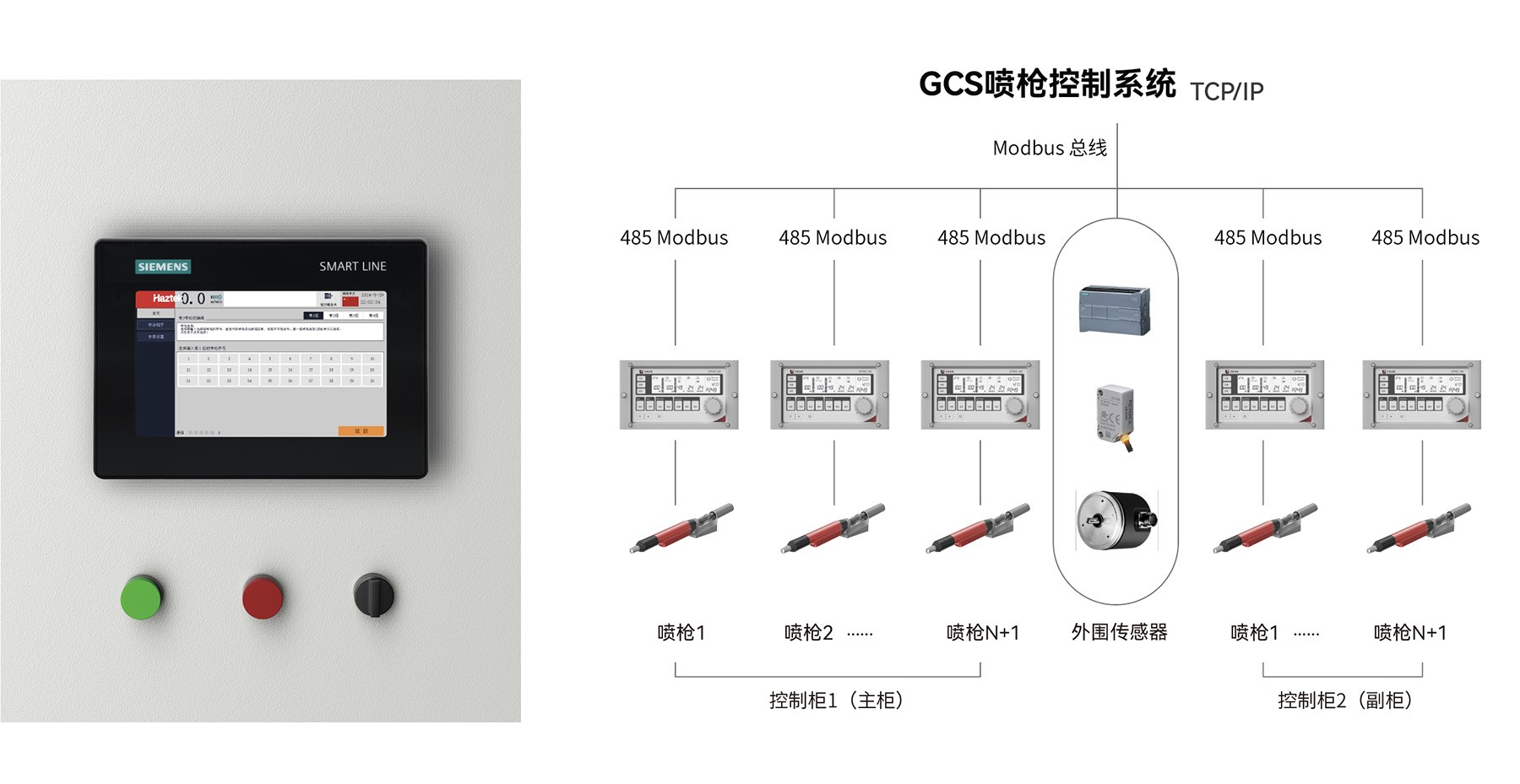

GCS噴槍控制系統/大規模噴槍部署的好幫手
GCS Spray Gun Control System/ A great tool for large-scale spray gun deployment.
簡單且易于理解的人機交互界面，集中控制所有參數并支持點對點精確控制。可靠的ModBus通訊總線，同時最多可支持127個站點，并且可以部署工件識別及遠程維護系統。此外，控制系統也具備一鍵同步清理的功能。
Simple and easy-to-understand HMI, centralized control of all parameters and precise point-to-point control. The reliable ModBus communication bus supports up to 127 stations simultaneously and allows the deployment of workpiece identification and remote maintenance systems. In addition, the control system also features one-button synchronized cleaning.

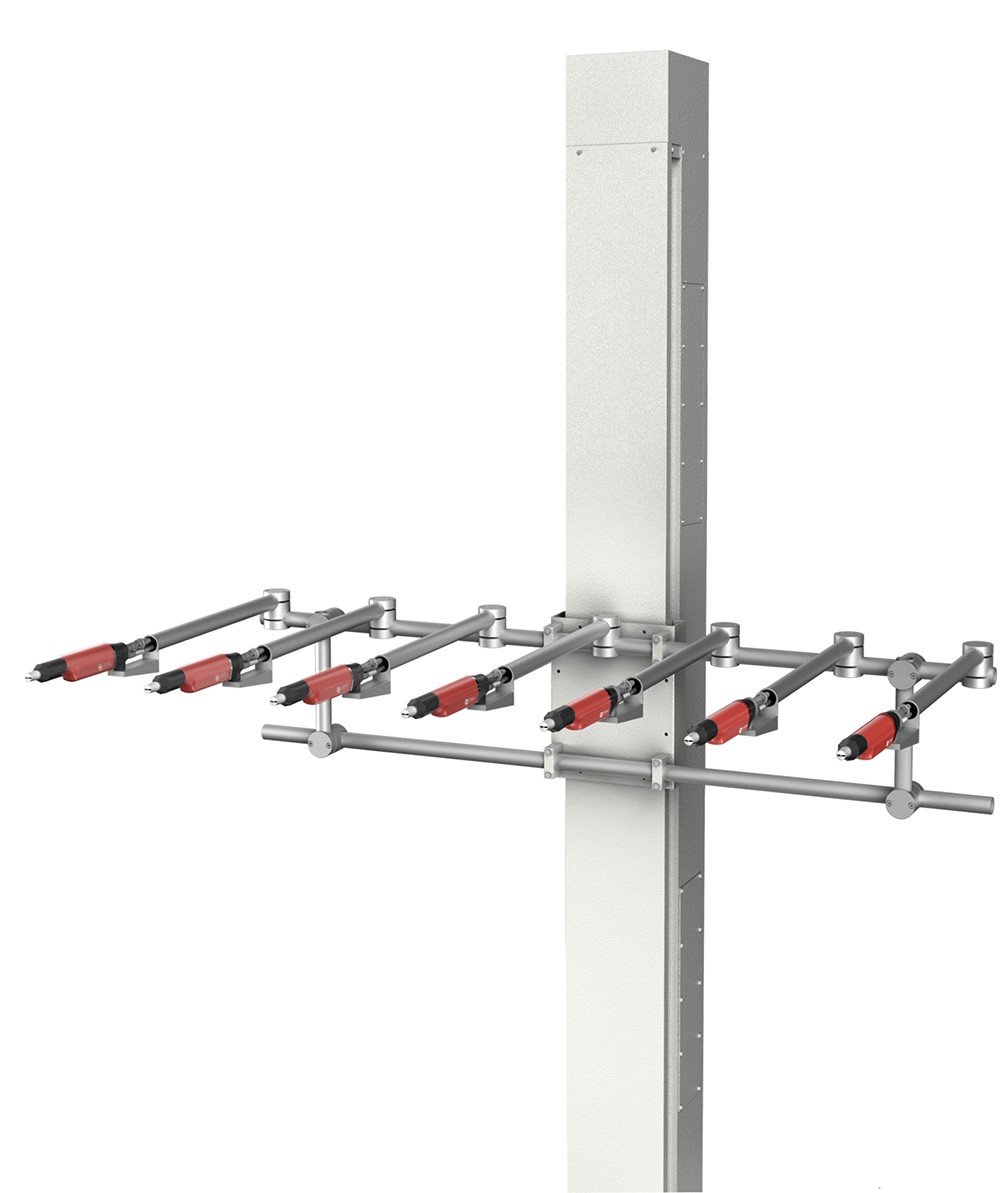

AG09自動噴槍
AG09 Automatic Spray Gun
內置100kV高性能倍壓模塊
搭配先進的控制系統，減少10%的粉末浪費，提高噴涂效率。
AG09噴槍內置100kV倍壓模塊結合電極針自清潔技術，能夠釋放強效靜電，確保每顆粉末涂料粒子均達到最佳帶電狀態。可適配包括金屬粉在內的大多數粉末，無論您使用哪種噴涂材料，都能提供穩定高效的噴涂效果。
Built-in 100kV high-performance step-up module
Combine with advanced control systems to reduce 10% of powder waste and improve coating efficiency.
The AG09 spray gun is equipped with an internal 100kV pressure module combined with electrode needle self-cleaning technology, which can release strong static electricity to ensure that each powder coating particle reaches the optimal charged state. It is compatible with most powders, including metal powders, and can provide stable and efficient spraying effects regardless of the type of spraying material you use.
上粉率高達70%
高上粉率顯著提升了粉末涂料的利用率，減少了材料浪費，降低了生產成本，同時提高了噴涂效率和涂層質量。
精確控制且適應性強
配備智能控制系統，具有精確的噴涂控制功能，確保噴涂均勻且一致。同時能夠適應不同的噴涂環境和涂料類型。
靜電強勁持久
電極針內部設計有三次清潔氣通道，持續清潔電極針尖，有效防止粉末凝結，確保優良的靜電釋放效果。
安全可靠，維護簡便
符合安全標準，確保操作人員的安全。在設計上兼顧維護和清潔的便捷性，降低維護成本。
Powder Efficiency Up to 70%
The high powder loading rate significantly improves the utilization of powder coatings, reduces material waste, lowers production costs, and improves spraying efficiency and coating quality.
Precise Control and High Adaptability
Equipped with intelligent control system, it has precise spraying control function to ensure even and consistent spraying. At the same time, it can adapt to different spraying environments and paint types.
Strong and Long-lasting Electrostatics
The electrode needle is designed with three times cleaning air channels inside the electrode needle, continuously cleaning the electrode tip, effectively preventing powder condensation and ensuring excellent electrostatic discharge effect.
Safe and Reliable, Easy to Maintain
Conforms to safety standards to ensure operator safety. Designed with ease of maintenance and cleaning in mind, reducing maintenance costs.
PPH40粉泵
PPH40 Powder Pump
適用于快速換色和快速清理。
滿足“即插即用”式功能，適用于快速換色和快速清理。粉管快插式設計便于粉管清潔的分離和連接。文丘里管由優質不粘材質制造，并配有連接壓縮空氣的快速接頭。粉末最大可輸出量為520g/min。
Suitable for quick color changes and rapid cleaning
Meets the "plug and play" function, suitable for quick color changes and cleaning. Quick plug design for powder hoses to facilitate separation and connection for cleaning. The Venturi tube is made of high-quality non-stick material and comes with a quick connection for compressed air. The maximum powder output is 520g/min.
可從粉桶拆卸
帶快拆式接頭單向閥
經久耐用的文丘里管
供粉穩定 霧化效果佳
粉末最大可輸出量520g/min
Easy disassembly from the powder barrel
With quick-disconnect one-way valve
Durable Venturi tube Stable powder supply
Excellent atomization effect
Maximum powder output of 520g/min
帶快拆式接頭單向閥
經久耐用的文丘里管
供粉穩定 霧化效果佳
粉末最大可輸出量520g/min
Easy disassembly from the powder barrel
With quick-disconnect one-way valve
Durable Venturi tube Stable powder supply
Excellent atomization effect
Maximum powder output of 520g/min
Milepost里程碑系列

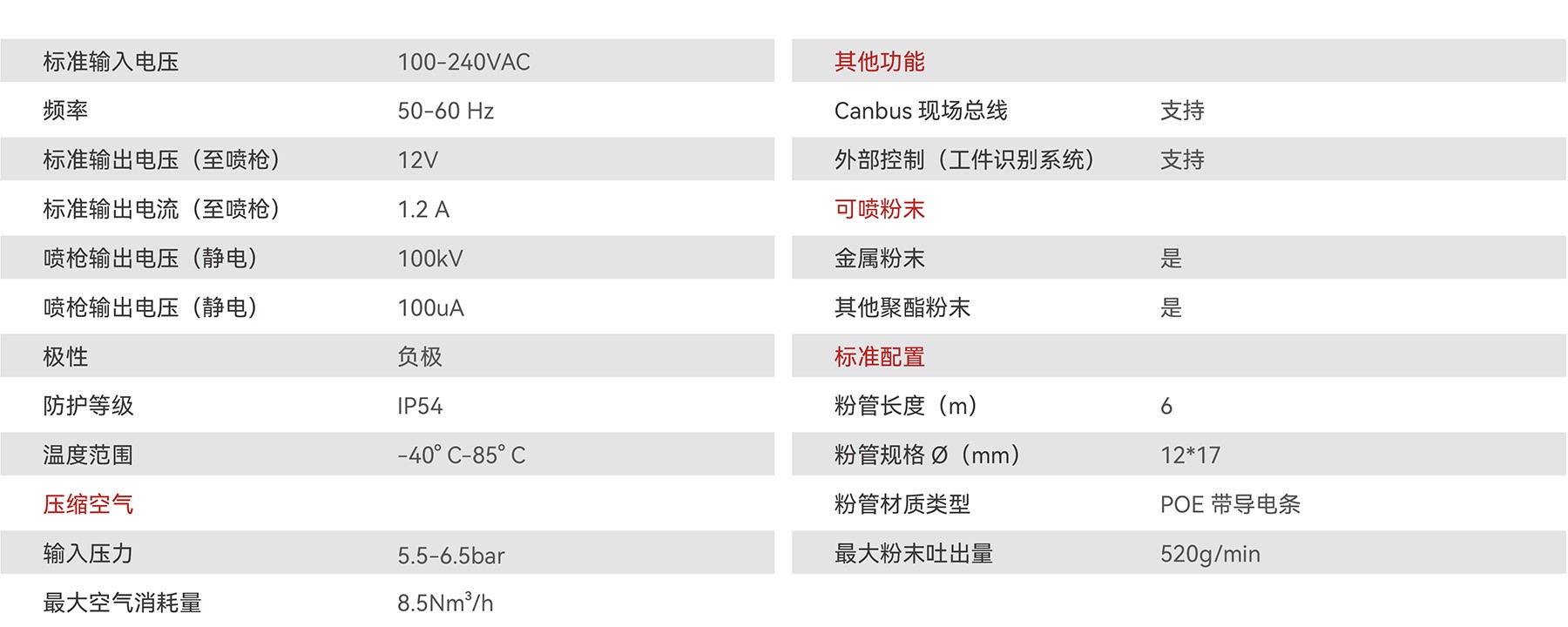

Automatic Electrostatic Powder Coating System Parameters
MG10手動噴槍
MG10 Manual Spray Gun
簡單易操作，適用多種應用場景
MG10手動噴槍內置100kV高壓模塊，能夠輕松適配包括金屬粉在內的大多數粉末。無論您使用哪種噴涂材料，都能提供穩定高效的噴涂效果。配備外置的遠程觸摸控制模塊，使噴涂參數的調整變得輕而易舉。僅須雙擊扳機，即可迅速切換到預設的噴涂程序，大大提高了工作效率。
Manual Spray Gun / Simple and easy to operate, suitable for a variety of applications.
The MG10 manual spray gun is equipped with a built-in 100kV high-voltage module, which can easily adapt to most powders, including metal powders. It provides stable and efficient coating effects regardless of the coating material you use. Equipped with an external remote touch control module, adjusting spray parameters becomes easy. With just a double-click of the trigger, you can quickly switch to preset spray programs, greatly improving work efficiency.

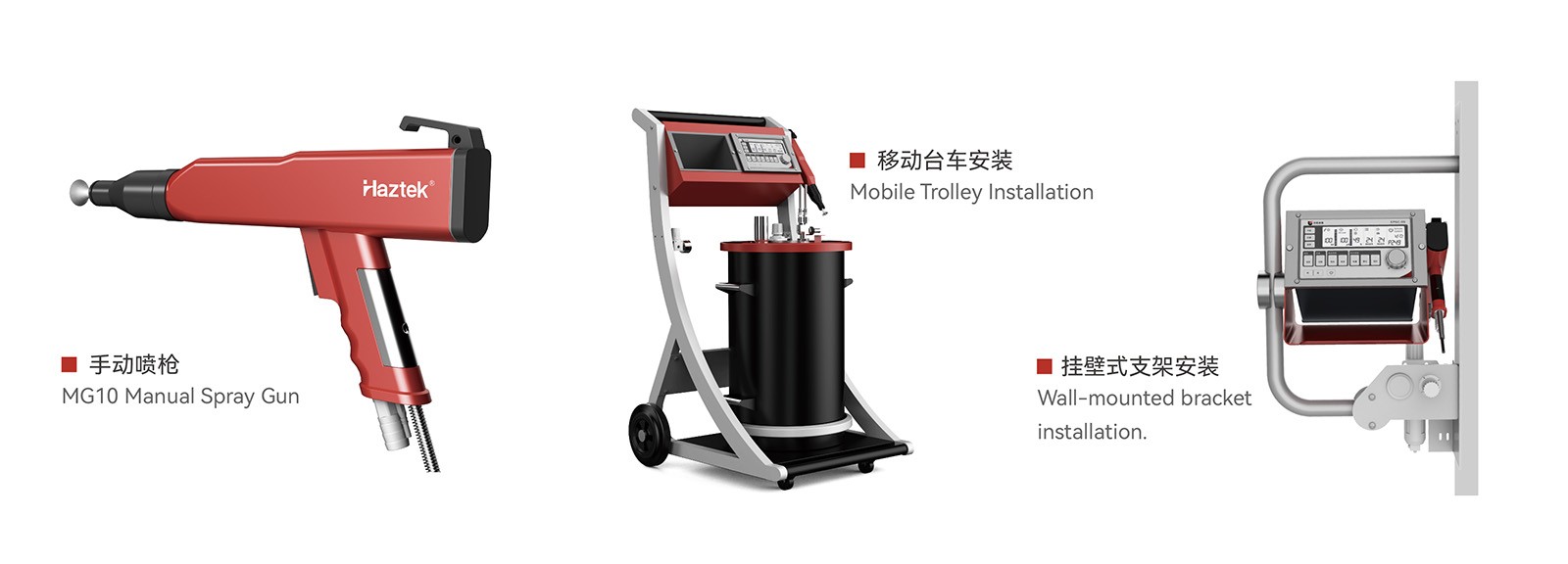

靈活搭配載具，適用多種場景應用。
GC09噴槍控制器可搭配堅固耐用的可移動推車實現移動應用，也可選擇掛壁式支架安裝和粉房設備完美集成。
Flexible combination with vehicles, suitable for a variety of scenarios.
The GC09 spray gun controller can be combined with a rugged and durable mobile trolley for mobile applications, or alternatively, it can be mounted with a wall bracket for perfect integration with powder coating equipment in a powder room.
Milepost里程碑系列
Automatic Electrostatic Powder Coating System Parameters
應用行業與項目案例
Applied Industries and Project Cases
GC09系列是一套性能卓越、易操作的噴涂系統，通過噴涂預設一鍵解決多類難噴的復雜工件。降低了操作人員的上手難度，同時提升生產效率與涂裝品質管控，真正實現降本增效的生產管理，提升經營效益和增長。廣泛應用于家居建材、汽車零部件、廚房家電、運動器械、工程機械等行業。
GC09系列已落地的項目遍布全國，如：和平鋁業、海天集團、舒華、興發鋁業、偉業鋁材、中富、三菱重工空調、亞泰集團、河北中凱交通、湖南三一重工塔機等企業。
GC09 series is a set of excellent performance, easy-to-operate coating system, through the spraying preset one-key solution for many types of difficult to spray complex workpieces. It reduces the difficulty for operators to get started, and at the same time improves the production efficiency and coating quality control, which really realizes the production management of cost reduction and efficiency, and enhances the growth of business efficiency. Used in home building materials, auto parts, kitchen appliances, sports equipment, construction machinery and other industries.
GC09 series has landed projects all over the country, such as: Heping Aluminum, Haitian Group, Shuhua, Xingfa Aluminum, Weiye Aluminum, Nakatomi, Mitsubishi Heavy Industries Air Conditioning, Yatai Group, Hebei Zhongkai Transportation, Hunan Sany Heavy Industry Tower and other enterprises.
